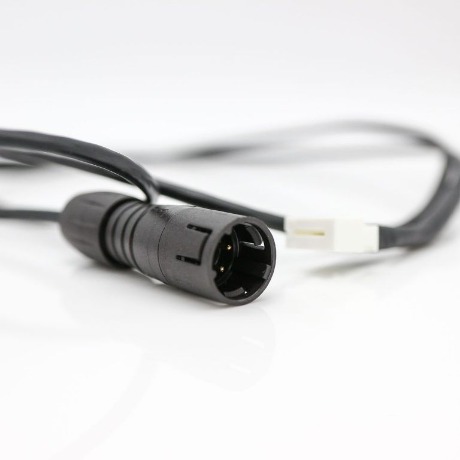

mp6-con
Connector for mp6-series to mp-x
Design and connectors – Molex FCC 1.25 mm pitch – 85 cm cable connector

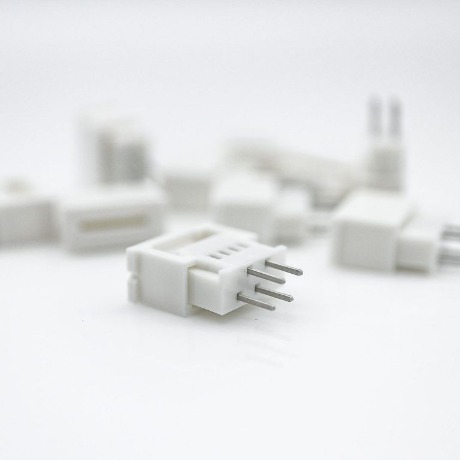

mp-mol
Suitable for all mp6-series
compatible with:mp6-liq, mp6-pi, mp6-pp, mp6-gas, mp6-gas+
FFC connectors can be electrically contacted for your own cable assemblies.
Connector to micropump mp6-series for custom made cabling
Interface: Style Through Hole

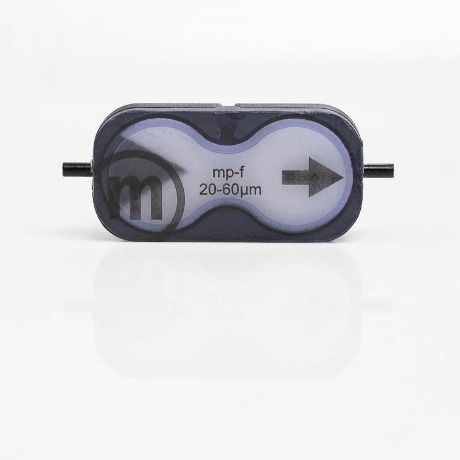

mp-f
Protection of fluidic systems from particles
Dimensions 21 mm x 5.5 mm
Fluidic connectors barbed tube clip, length: 5.6 mm for tubing with internal diameter: 1.3 mm Filter porosity 20 – 60 µm

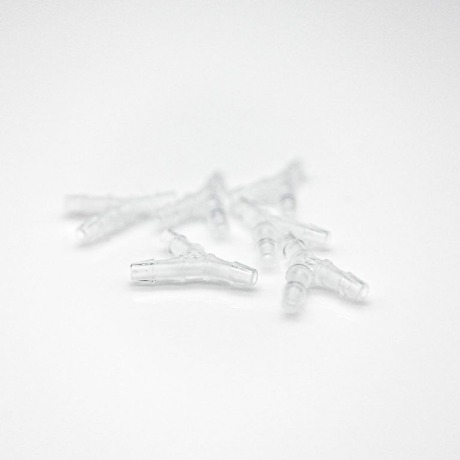

mp-y
Y-connector for tubing, for the parallel use of two micropumps
Material polypropylene (PP) for tubing inner diameters of 1.3 – 2.6 mm
mp-t (1.3mm Tubing)
Inlet/outlet compatible Tygon® tubing.
Inner diameter 1.3 mm /Outer diameter 3 mm /Wall thickness 0.85 mm
Sterilizable Yes (autoclave or ethylene oxide)
Color transparent
Suitable micropumps mp6-pi, mp6-gas, mp6-pi

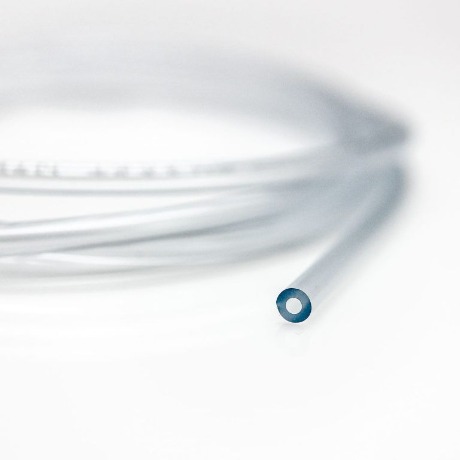

mp-t (1.02mm Tubing)
Inlet/outlet compatible Tygon® tubing.
Inner diameter 1.02 mm /Outer diameter 2.74 mm /Wall thickness 0.86 mm
Sterilizable Yes (autoclave or ethylene oxide)
Color transparent
Suitable micropumps mp6-pp

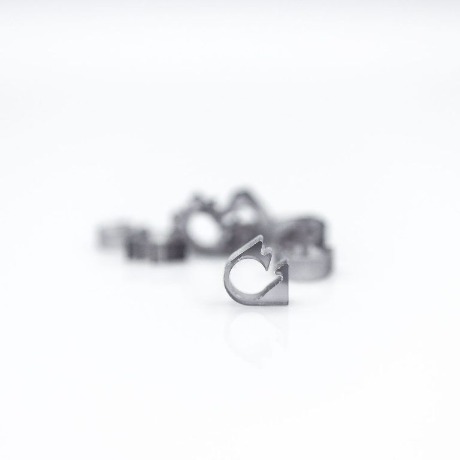

mp-hc
Hose clip to prevent leakage in high pressure applications
Inner diameter (when closed) 3 mm
Dimensions In closed state: 4 mm x 5.1 mm
Width (in tube direction): 2 mm
Suitable tube tygon hose 1.3 mm connected with barbed tube clip

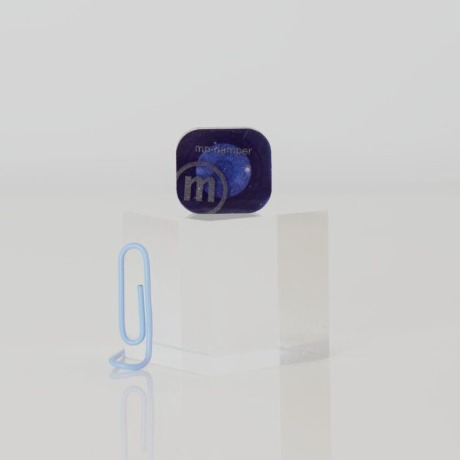

mp-damper
Reduction the pulsation
The damper reduces the pulsation of liquid from micropumps so that sensors can measure more reliably
Dimension: 17 x 19 x 5 mm
Material: PPSU, FKM, PP, epoxy-based adhesive

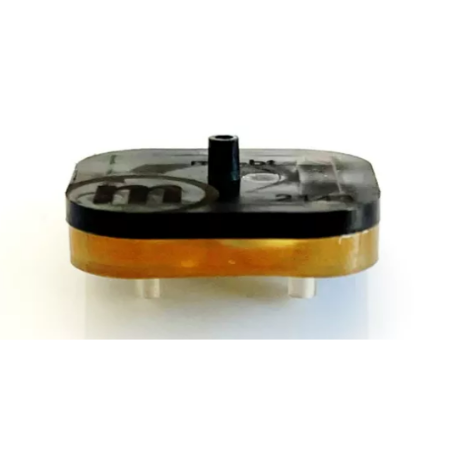

mp-bt
A bubble trap to get rid of bubbles in your flow stream
Dimensions: 17 x 19 x 10 mm
Media: Water based solutions
Internal volume: 100 µl
Water entry pressure: 1.9 bar
