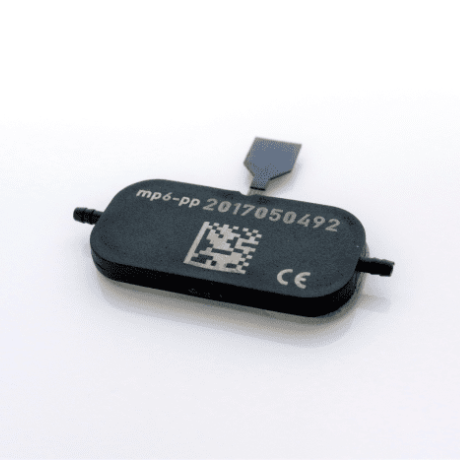

mp6-pp
Piezoelectric Diaphragm Pump
- 30 x 15 x 3.8 mm
- 2 g weight
- controlable flowrate 8 µl/min up to 4.000 µl/min
- typ. flow rate 4 ml/min
- typ. back pressure 500mbar @100 Hz, 250 Vpp, SRS signal
- material in contact with media: PP
Product Description

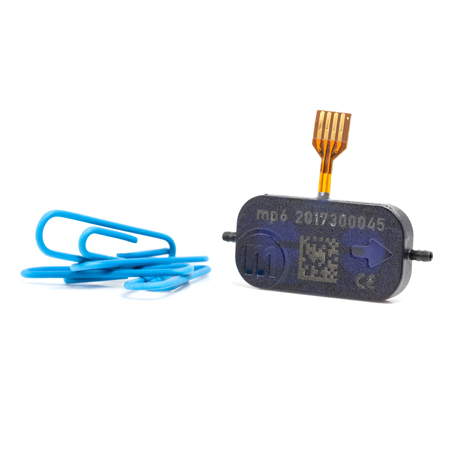

The mp6-liq micropumps can be used to promote both liquids and gases, for liquids in particular the mp6-PP offer a wide range of usable liquids.
Bartels’ mp6 series are miniaturized double diaphragm pumps. Each pump is run by two piezo actuators. Due to the space- and energy-saving construction they are cost-effective even in high quantities. The materials used make the pump remarkably versatile. Variable flow rate adjustment guarantees a wide range of possible applications.
mp6-hyb Specifications
Typical values. For more detais, please, see the datasheet
| Parameter | Value |
|---|---|
| Pump type | piezoelectric diaphragm pump |
| Number of actuators | 2 |
| Dimensions without connectors | 30 x 15 x 3,8 mm |
| Weight | 2 g |
| Fluidic connectors | barbed tube clip, (outer diameter min 1.77 mm - max 1.85 mm, length 3.5 mm) |
| Electric connector | flex connector 1.25 mm pitch |
| Power consumption | ~ 50 mW |
| Self-priming | yes |
| Pumping media | Liquids and mixtures |
| Operating temperature | 0-70°C |
| Lifetime | 5000h |
| IP code | IP33 |
| Material in contact with media | polypropylene (PP), Polyimid foil (PI) |
| Suitable pump driver | mp-labtronix, mp-Multiboard, mp-Highdriver, mp-Lowdriver, mp-Highdriver4 |
