mp-Multiboard2 EVB
mp-Mulitboard2 evaluation board
- 142.5 x 71.0 x 19 mm (board dimensions)
- Variable parameters amplitude, frequency, waveform depending on selected driver chip.
- Amplitude range: depending on selected driver chip.
- Frequency range depending on selected driver chip.
- Power supply: 5 V, 500 mA
Product Description

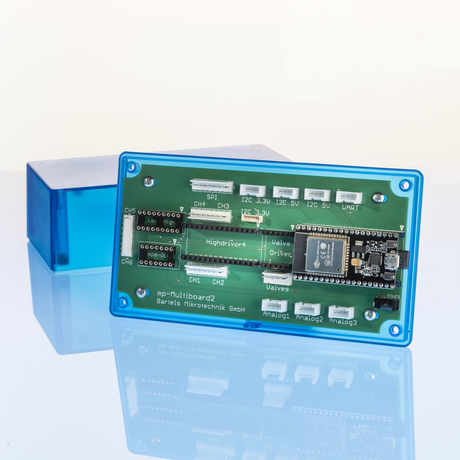

The mp-Multiboard2 is an evaluation board which allows the control of up to three of our I²C controlled pump drivers by an ESP32 microcontroller. Our drivers are the mp-Highdriver4, the mp-Highdriver, the mp-Lowdriver and the mp-Driver. Up to six mp6 micropumps can be connected to the board simultaneously. An external power supply connection via USB Type-C is available. However, the board can also be powered via the microcontroller’s USB port. The board has several auxiliary ports for use with active valves, pressure and flow sensors. The mp-Multiboard2 comes pre-programmed with interface software and a Windows application. In addition, because of the esp32, a connection via bluetooth can be established for wireless use. The interface protocol will be available soon.
Specifications
Typical values. For more detais, please, see the datasheet
| Parameter | Value |
|---|---|
| Dimensions | 142.5 x 71.0 x 19 mm 5.61 x 2.80 x 0.75 in. |
| Adjustable parameters | Variable parameters amplitude, frequency, waveform depending on selected driver chip |
| Amplitude range | depending on selected driver chip. |
| Frequency range | depending on selected driver chip. |
| Signal form | depending on selected driver chip. |
| Interface | USB |
