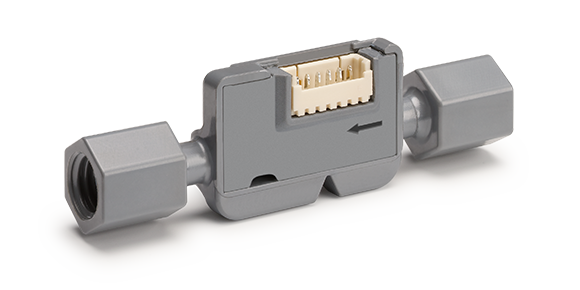

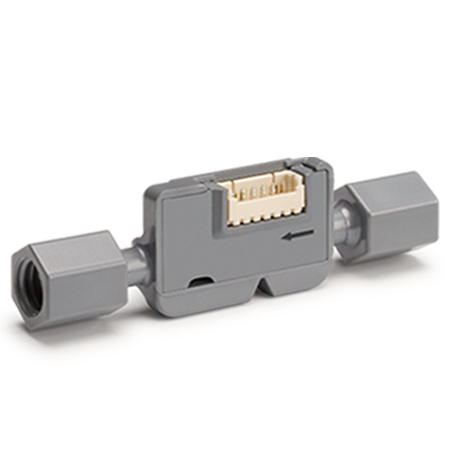

SLF3S-1300F
Liquid Flow Sensor
- Highly integrated: Linearized, temperature-compensated and fully calibrated digital output signal (I2C) from a single chip
- Calibrated for water and IPA up to ± 40 ml /min (SLF3S-1300F) or ± 2000 µl/min (SLF3S-0600F)
- Turn down ratio 200:1 or better
- High speed measurement: Response time below 20 ms
- Bidirectional measurement and real time failure detection
- Easy fluidic and electrical integration via ¼″-28 flat bottom ports and a standard connector
- Straight, unobstructed flow channel without moving parts
- Media isolated sensing principle: no direct sensor contact with the fluid
- Compact and light-weight form factor
- Chemically resistant wetted materials
Product Description
The SLF3S-1300F is Sensirion’s compact liquid flow sensor designed for high-volume applications. It enables precise and reliable measurements of dynamic liquid flow rates up to 40 ml/min bi-directionally. The SLF3S-1300F sensor features a digital interface (I2C) via a 6-pin standard electrical connector. The SLF3S-1300F builds on the latest generation CMOSens® sensor chip that is at the heart of Sensirion’s flow sensing platform and allows achieving an outstanding performance. The patented CMOSens® technology combines the sensor element, signal processing and digital calibration on a small CMOS chip. The well-proven CMOS technology is perfectly suited for high-quality mass production and is the ideal choice for demanding and cost-sensitive OEM applications.
Specifications for liquid flow sensor SLF3S-1300F (all data for medium H2O, at 23°C, and for VDD 3.5V)
| Parameter | SLF3S-1300F |
|---|---|
| H2O Full scale flow rate | ±40ml/min |
| H2O Sensor output limit | ±65ml/min |
| Accuracy (whichever error is larger) | ±5% of measured value 0.05ml/min |
| Repeatability (whichever error is larger) | ±0.5% of measured value 0.01ml/min |
| Temperature coefficient (additional error / °C; whichever is larger) | 0.2% measured value / °C 0.002ml/min / °C |
| Mounting orientation sensitivity | <0.02ml/min |
Specifications for liquid flow sensor SLF3S-1300F (all data for medium IPA, at 23°C, and for VDD 3.5V)
| Parameter | SLF3S-1300F |
|---|---|
| IPA Full scale flow rate | ±40ml/min |
| IPA Sensor output limit | ±65ml/min |
| Accuracy (whichever error is larger) | ±10% of measured value 0.2ml/min |
| Repeatability (whichever error is larger) | ±0.5% of measured value 0.01ml/min |
| Temperature coefficient (additional error / °C; whichever is larger) | 0.2% measured value / °C 0.004ml/min / °C |
| Mounting orientation sensitivity | <0.05ml/min |
