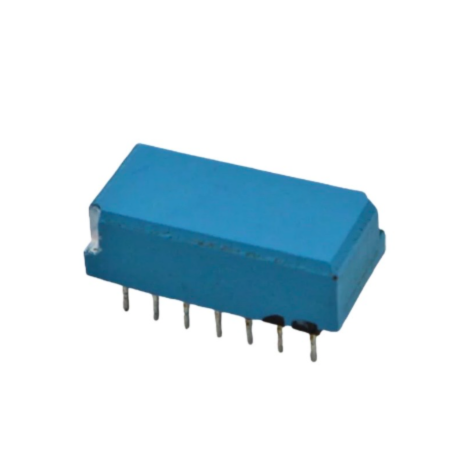

mp-Driver
mp-Driver controller
- 10.5 x 20.5 x 6 mm
- Compatible controller: mp-Multiboard2
- Interface I2C
- Power supply: 2.5 - 5.5 VDC (5 V recommended for optimized performance)
- Pin arrangement: DIL 14; horizontal 2.54 mm, vertical 7.62 mm
- Current consumption: avg. 30 mA at 5 V
- Adjust the pump parameters: amplitude, frequency
- Amplitude range: 85 - 250 Vpp
- Frequency range: 25 - 226 Hz
Product Description
The mp-Driver is suitable for higher flow rates and viscous fluids like oil. The driver offers the possibility of variable pump control at a size similar to an integrated circuit for integration into the system electronics or on a circuit board. It generates amplitudes up to 250 Vpp from a 3-5 V DC supply. Very low power consumption makes this microelectronic driver ideal for battery-powered handheld devices or even solar-powered devices.
Specifications
Typical values. For more detais, please, see the datasheet
| Parameter | Value |
|---|---|
| Dimensions | 10.5 x 20.5 x 6 mm |
| Adjustable parameters | amplitude, frequency |
| Amplitude range | 85 - 250 Vpp |
| Frequency range | 25 - 226 Hz |
| Compatible controller | mp-Multiboard2 |
| Interface | I2C |
| Power supply | 2.5 - 5.5 VDC (5 V recommended for optimized performance) |
| Current consumption | avg. 30 mA at 5 V |
| Pin arrangement | DIL 14; horizontal 2.54 mm, vertical 7.62 mm |
