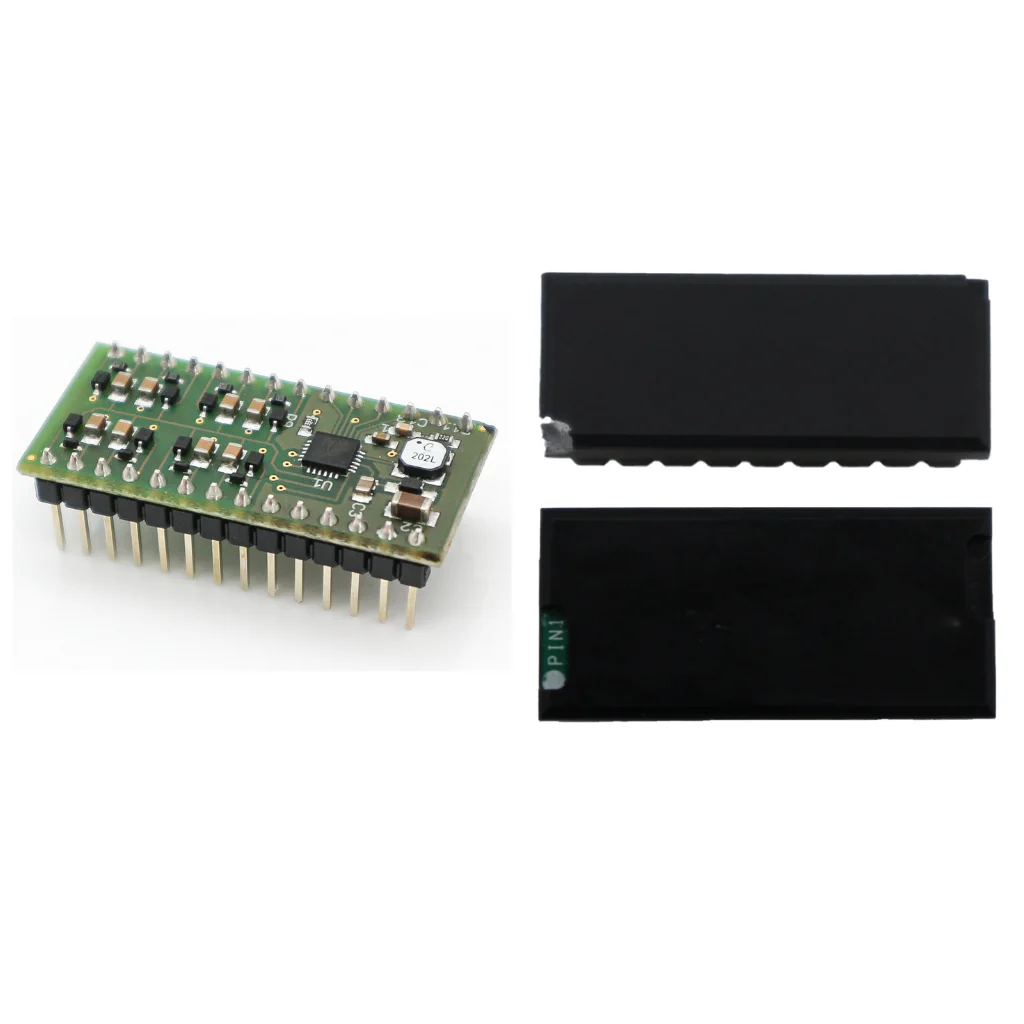

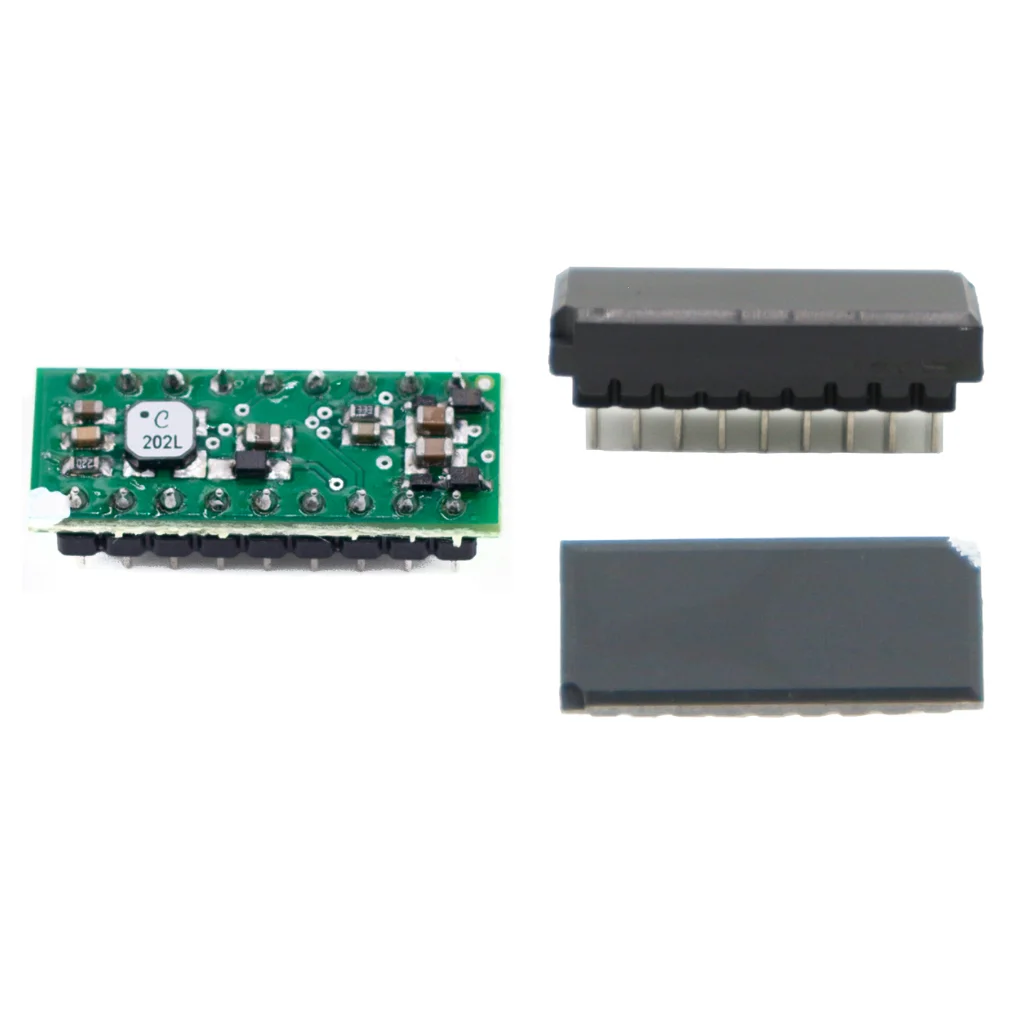

mp-Highdriver
mp-Highdriver controller
- 10.16 x 25.4 x 2.82 mm
- Amplitude range 10 – 250 Vpp
- Frequency range 50 – 800 Hz
- Interface I2C
- Power supply: 2.7 – 5.5 VDC
- Current consumption avg. 30 mA at 5 V
Product Description
The mp-Highdriver drives the micropump at adjustable performance in a package similar to an integrated circuit. It enables integration into system electronics or on a PCB.
Specifications
Typical values. For more detais, please, see the datasheet
| Parameter | Value |
|---|---|
| Dimensions | 10,16 x 25,40 x 2.82 mm 0.4 x 1.0 x 0.11 in |
| Adjustable parameters | amplitude, frequency, wave-form |
| Amplitude range | 10 - 250 Vpp |
| Frequency range | 50 - 800 Hz |
| Signal form | Sine, rectangular, trapezoid |
| Interface | I2C |
| Power supply | 2.7 - 5.5 VDC |
| Current consumption | ca. 30 mA at 5 V |
| Pin arrangement | DIL 18; horizontal ~2.54 mm, vertical ~7.62 mm |
